Chimney Construction

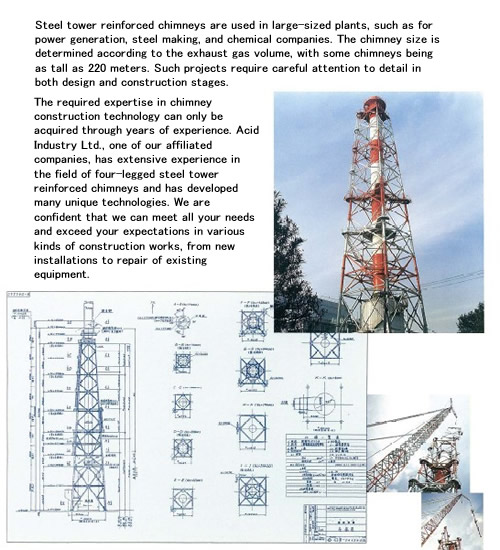

Steel Tower Reinforced Chimney


 Steel tower reinforced chimney

 Steel tower reinforced chimney

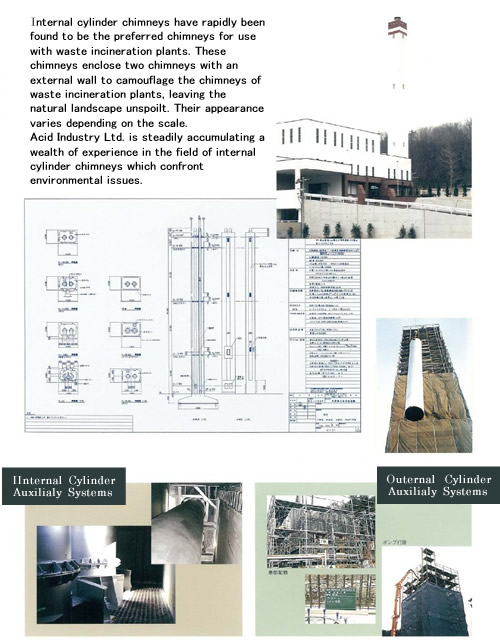

Internal Cylinder Chimney


Internal cylinder chimney

Internal cylinder chimney

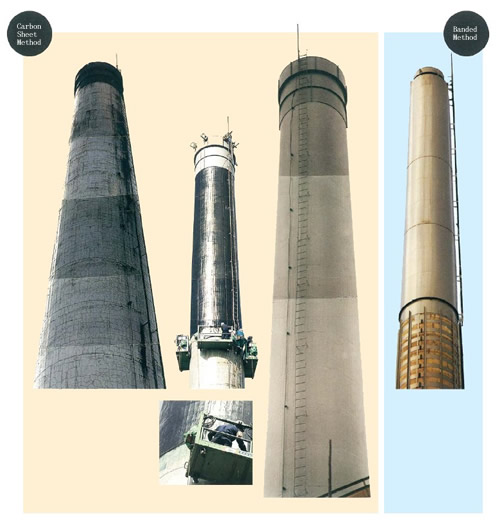

Chimney External Shell Repair Works

Chimneys have become increasingly taller over time, and their impact on local communities is immense in terms of safety concerns.If chips from the external walls fall down from the heights of the wall due to cracks in the concrete, it may result in serious accidents. Chimney repair works undertaken by Acid Industry Ltd. prevents such accidents and ensures safety. Depending on the conditions and scale of the chimney, we use either the carbon sheet method or the banding method.

Carbon Sheet Method

In this method the damaged chimney surface is covered with a carbon sheet, and a topcoat is applied to prevent the chimney from cracking further and also to prevent water from entering the chimney.The method also includes reinforcement of top caps if necessary, depending on the condition of the chimney.

Banded Method

In this method, steel or stainless steel bands are wound vertically and horizontally around the entire chimney to reinforce the external wall. In extreme cases, it may be necessary to totally enclose the chimney with a steel sheet, depending on the extent of surface cracking.

Chimney External Shell Repair Works

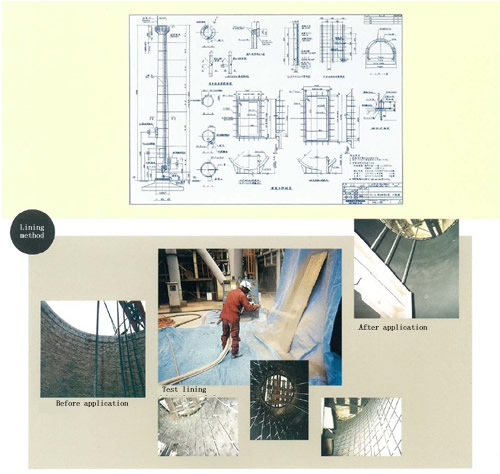

Chimney with Internal Liner Repair Works

The lining method is used for repair works to protect the inside of the chimney from flue gas acid. We apply this method to carry out high-quality works for every nook and cranny of the chimney, through our flexible services that include removal of inner materials corroded by acid, selection of lining materials according to conditions, and application of a double- or multi-layer lining depending on conditions. In addition to the maintenance works using the lining method, and so on, Acid Industry Ltd. has numerous accomplishments in total repair works for various parts of chimneys, and has been highly evaluated by customers.

Chimney with Internal Liner Repair Works



Chimney Diagnosis

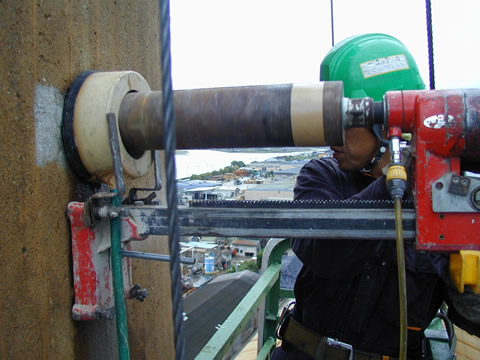

We offer diagnostic services for various types of chimneys. We take core samples of the stack shell concrete, and measure the compression strength and the depth of neutralization of the samples to inspect and report on the degradation state of the concrete material.
